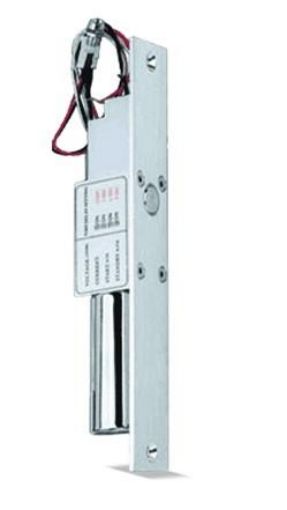

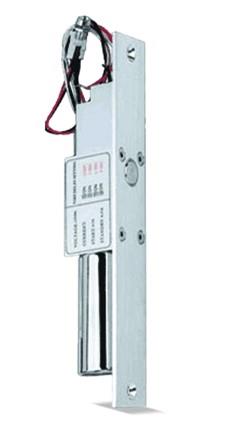

Solenoid Bolt lock

Voltage tolerance: ±15%.

Current draw: Pull in 1A, Holding 0.4A at 12Vdc (at temperature 20°C).

Lock’s surface temperature: Current temperature ±20% (when power is on).

Magnetic bolt status output indicates bolt locked or unlocked status (SPDT rated 3A at 30Vdc).

Operating temperature: -10~45°C (14 to 131°F).

Humidity: 0~95% non-condensing.

Tested to 500,000 cycles.

Weight: 0.9kg (approx).

Horizontal or vertical installation.
