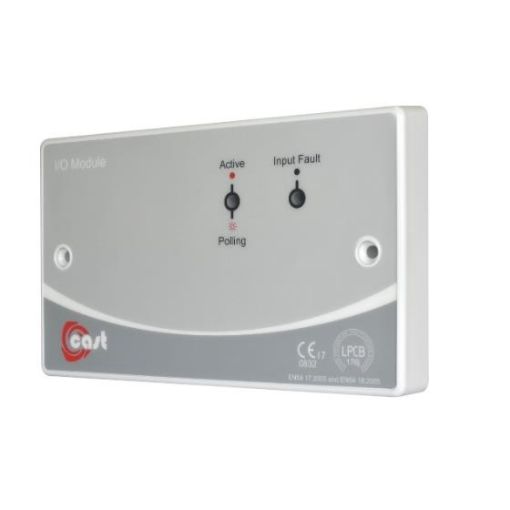

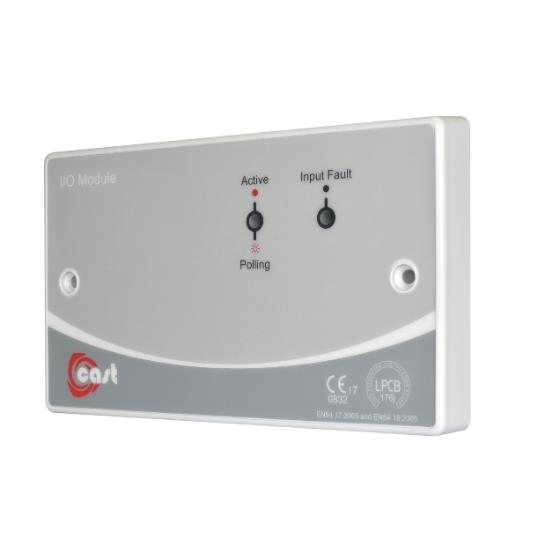

C-Tec CAST input output module

> LPCB certified to EN54-17 & 18 and Kiwa Telefication certified to EN54-13.

> Incorporates the functions of a switch monitor, zone monitor and output unit.

> Can be configured to monitor any combination of:-

> Up to 20 conventional detectors & 10 MCPs

> Any normally open switch with an EOL resistor fitted.

> Onboard short-circuit loop isolator.

> A simple normally open or closed switch (non-fault monitored).

> Indicators for Loop polling, input faults and relay status.

> 5.5mA typical alarm current (1.3mA typical quiescent current) @ 22-40V DC.

> Can switch 1A@30V DC (or 0.3A@125V AC)

> Includes volt free changeover contacts that can be used to trigger rollershutter doors, gas shut-off valves, smoke vents, etc.

> Mountable on a C-TEC NCP-26 surface box or a standard UK 25mm double gang back box (not supplied).
